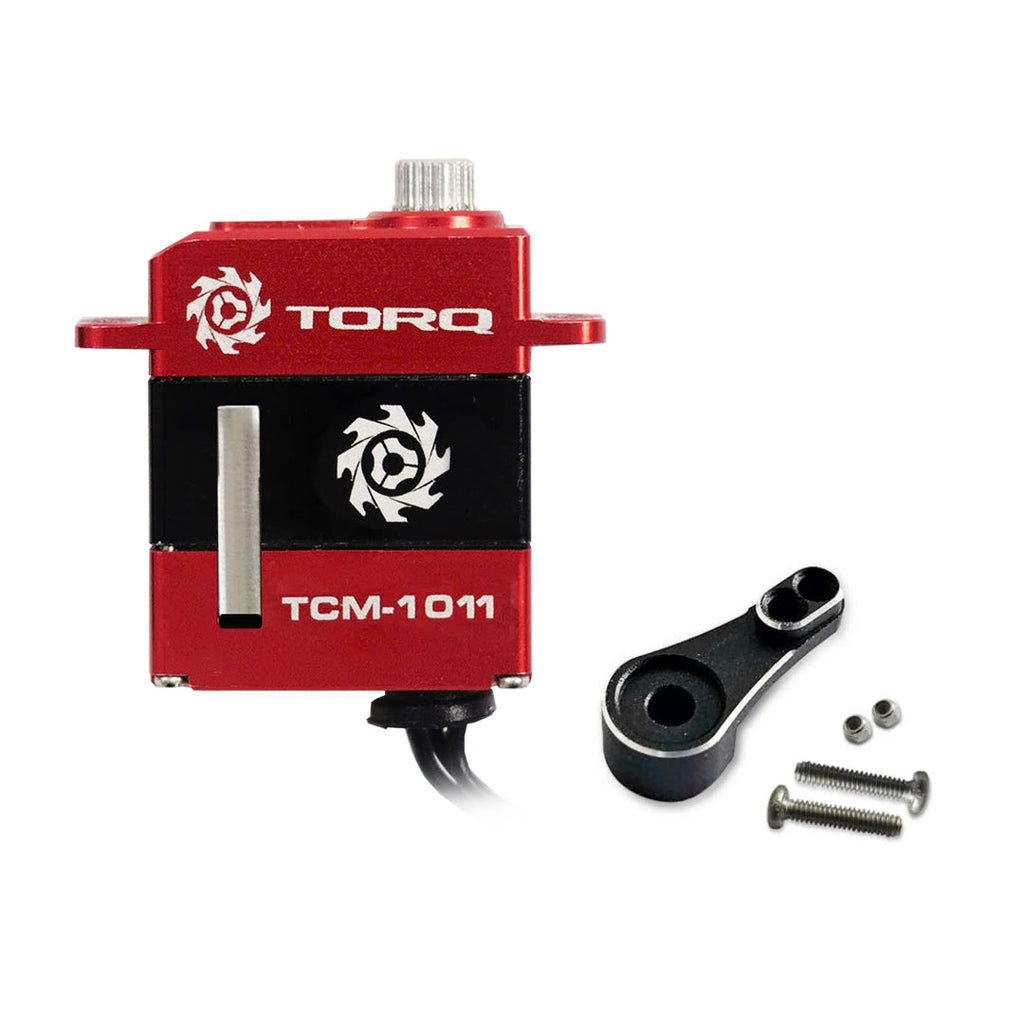

TORQ Servo TCM-1011 fitting TRX-4M & TRX-4MT needs:
Features
- High Torque Output: Delivers powerful performance for small-scale crawlers.
- Rear Exit Wires: Ensures suspension travel is unhindered for optimal performance.
- Simplified Installation: Easy to mount due to its unique design.
- Enhanced Clearance: Designed for ultimate clearance around the servo.
Specifications
- Dead Bandwidth: 2μs
- Working Frequency: 1520μs / 330Hz
- Operating Voltage: 6.0V - 8.4V
- Motor Type: Coreless Motor
- Operating Speed:
- At 6.0V: 0.1 sec/60°
- At 8.4V: 0.07 sec/60°
- Stall Torque:
- At 6.0V: 8.2 kg-cm (113 oz-in)
- At 8.4V: 11.5 kg-cm (160 oz-in)
- Dimensions: 23 x 12 x 27.5 mm (0.91 x 0.47 x 1.08 inches)
- Weight: 20.0 g (0.7 oz)
- Connector Wire Length: JR 170 mm (6.7 inches)
- Output Gear Spline: 25T
Color: | Blue, Purple, White |
Size: | 20, 24 |
Material: | 100% Polyester |

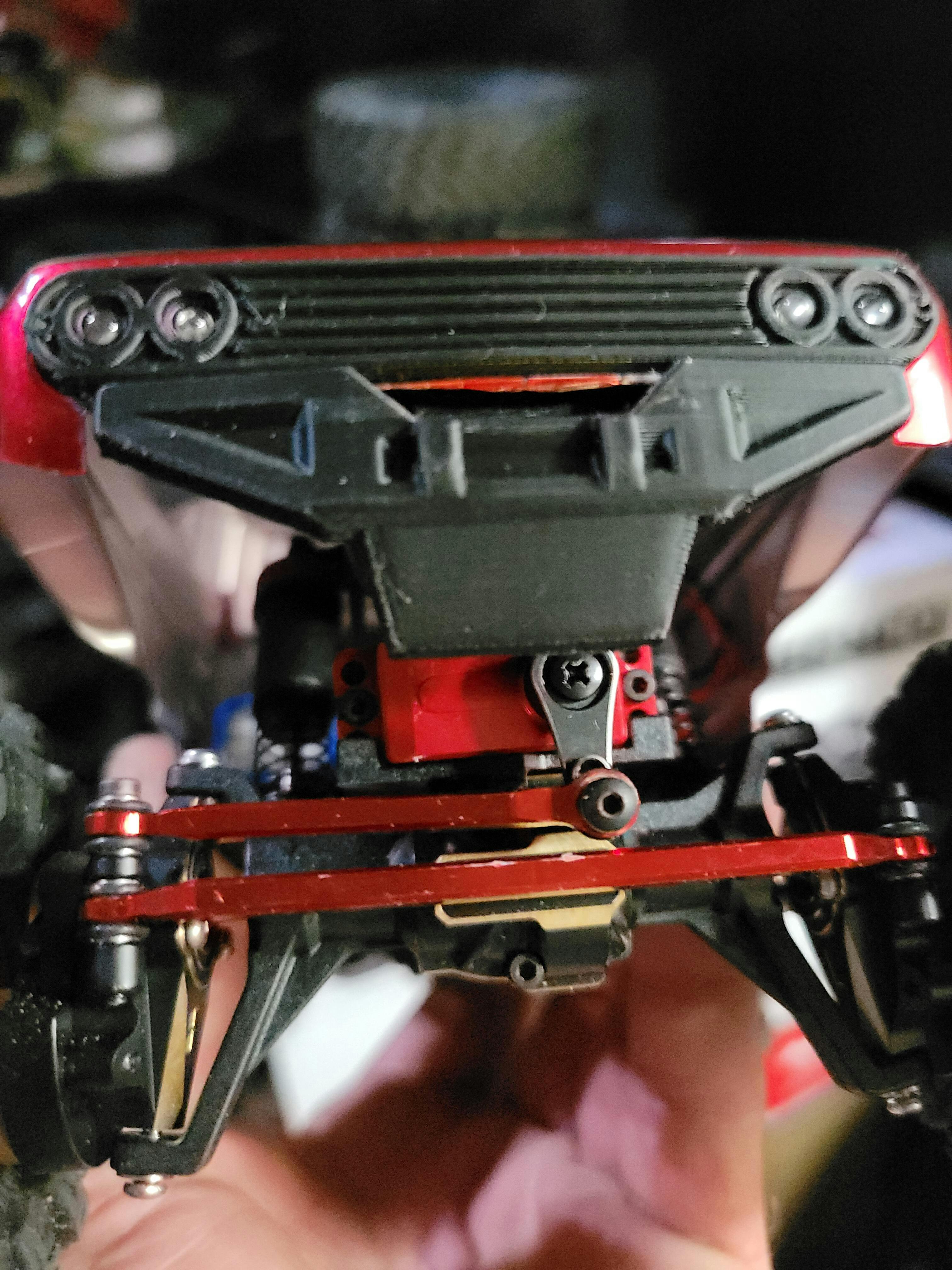

Love the anodized red on the servos. I installed them on my new scx24 broncos with their aluminum servo tray. They’re running on meus iso axles. The servos have great response and pretty strong to move that extra weight.

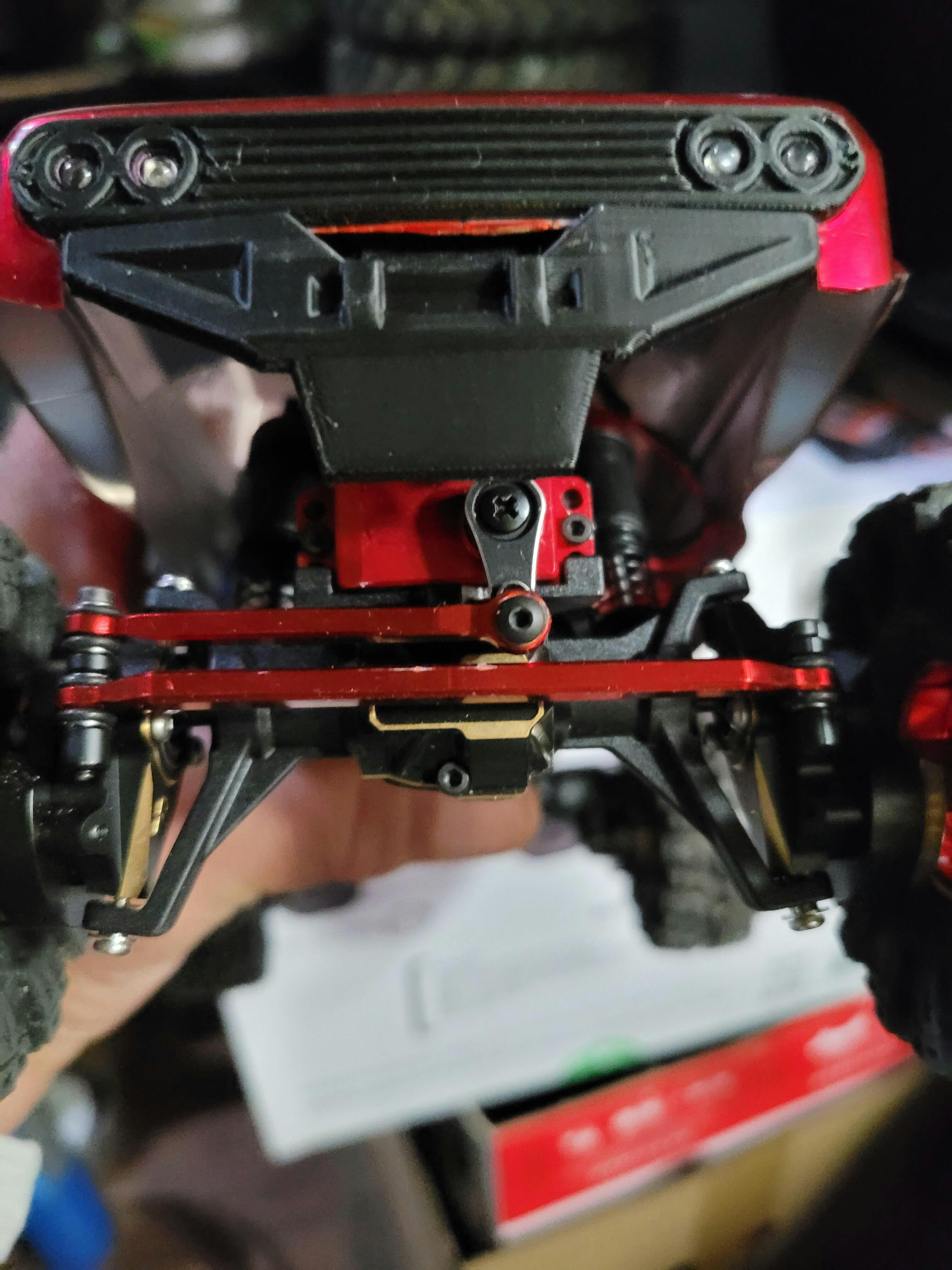

I just installed in my stock TRX4M Bronco with the servo still vertical. The fitment was close. The servo is longer than the bracket it fits inside of. Had to shave either end a good amount so it would fully seat into the bracket. Had to shave the tabs down flush where the screws hold the servo in so it will sit even further down. Had to use a 2.5mm drill bit to open the center slot so screws will fit for installation. After all is installed with the aluminum servo horn there is a 6mm gap between the horn and the tie rod for steering. Had to use a spacer for proper fitment and now there is a lot of acentric loading on the screw in servo horn. The final issue is the cord is too short with the ESC in the stock location. It barely reaches and a minimum of a 3-inch extension is needed if you want to run your wiring neetly through your chassis. The servo works great though. Fast, quiet and strong.
