FURITEK STARTER WITH TX/RX COMBO 118 2S BRUSHLESS POWER SYSTEM FOR TRX-4M
FURITEK STARTER WITH TX/RX COMBO 118 2S BRUSHLESS POWER SYSTEM FOR TRX-4M
FURITEK STARTER WITH TX/RX COMBO 118 2S BRUSHLESS POWER SYSTEM FOR TRX-4M
FURITEK STARTER WITH TX/RX COMBO 118 2S BRUSHLESS POWER SYSTEM FOR TRX-4M

FURITEK STARTER WITH TX/RX COMBO 118 2S BRUSHLESS POWER SYSTEM FOR TRX-4M

$119.99 $155.99
You will earn 155.99 points for buying this product
style="display:none" ETA: 07/10/2024

FURITEK STARTER WITH TX/RX Combo 118 2S Brushless Power System FOR TRX-4M

SUPPORT 2S LIPO only

Introducing the Furitek STARTER 118 brushless power system for TRX-4M, the system includes the VENOM 1212 3450kv with lighter and smaller size yet very powerful at low speed but also more powerful and fast at high speed, a Lizard Pro esc. The motor is designed with high torque at low speed crawling and with a special firmware from the Lizard Pro ESC, this motor is super smooth without any cogging at both low and high speed operation. This power system is a complete drop-in combo for TRX-4M even compatible with stock battery. With Furitek FURICAR mobile phone app and Bluetooth module, users can set up any parameters on the run without touching the truck, creating seamless adjustments for your favorite settings.

Features:
- A smaller and lighter brushless motor VENOM for low C.G. setup same like stock
- High performance and powerful 30A/50A brushless ESC with FOC technology
- Bluetooth module for wireless connection
- Precision CNC brass pinion for long-lasting operation
- Powerful at low speed but also more powerful and fast at high speed
- High torque at low speed crawling
- Super smooth without any cogging at both low and high speed operation¬
- Compatible with stock battery
- Lifetime FREE firmware upgrade!

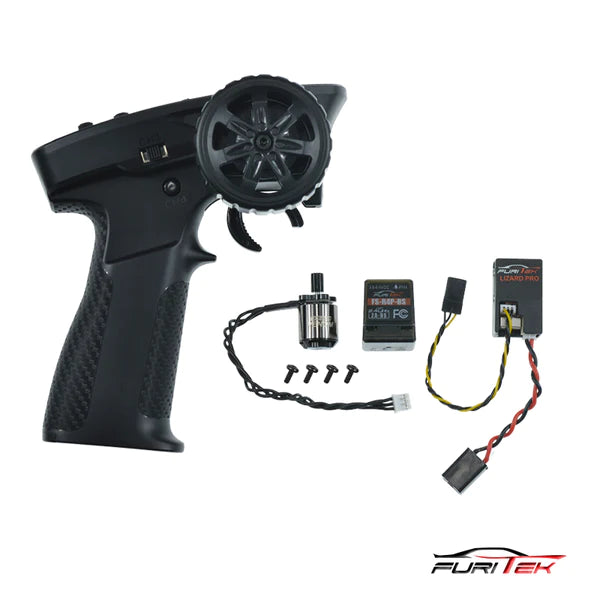

Package includes:
- 1 x LIZARD PRO 30A/50A BRUSHED/BRUSHLESS ESC FOR FCX24 WITH FOC  TECHNOLOGY with enclosing plastic case
- 1 x built-in Bluetooth module
- 1 x VENOM 1212 3450KV brushless motor
- 1 x 11T CNC Steel Pinion

- 1 x Furitek Transmiter 4CH
- 1 x Furitek Receiver 4CH

Motor Features and Specs
Features:
- 12 Pole hi-torque motor design.
- Super thin (0.2 mm) stator laminations---lower eddy losses---maximizes efficiency.
- Japansese NMB --High RPM ABEC5 bearings.
- Precision balanced rotor, smoothness for best reliability and maximum RPM.
- CNC machined 6061 T6 billet aluminum heatsink can.
- Precision engineered for maximum energy conversion.
- High purity and higher temperature single copper windings, lower copper losses,
very good heat dissipating, maximizes efficiency.

Specifications:
- KV (RPM/Motor) – 3450
- No-load current @10V – 0.7A
- Watt – 120W
- Battery – 2S
- Resistance – 0.16 Ohms
- Max Current – 10A
- Slot/Pole – 12
- Motor size (mm) – 15.5x20.6
- Shaft (mm) – 1.5x6
- Weight (g) – 17.5

ESC Features and Specs
Features:
- Support sensorless brushless DC and brushed DC motor (config via app, default is brushless)
- FOC (Field-oriented control) technology
- Plug & Play designed for FMS FCX24 crawlers
- 5V/ 6.5V 2.5A Built-in BEC (config via app)
- Support 2S-3S lipo battery - Mini size and lightweight
- Super easy programming via App on both Android and IOS
- Firmware update available (Bluetooth module required)
- Real-time telemetry up to 10Hz

Specifications:
- Support 2S-3S lipo battery
- BIG BEC: 5V or 6.5V 2.5A (No additional BECs necessary when using big Servos)
- Constant current: 30A
- Burst current: 50A
- Built-in power switch
- Built-in bluetooth module
- Dimension (mm): 28(L)x 15.5(W)
- Weight: 3.7 gram

Color: Blue, Purple, White
Size: 20, 24
Material: 100% Polyester

Customer Reviews

Based on 13 reviews
100%
(13)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
L
Lee Dreyer (dre635)

FURITEK STARTER WITH TX/RX COMBO 118 2S BRUSHLESS POWER SYSTEM FOR TRX-4M

K
Kai Chun Chang
Sweet bundle for easy conversion!

This is my 4th Furitek brushless motor. I noticed it’s much smoother at the extreme low end than the Injora equivalent. I like how this bundle gives me everything I needed to give my latest build the buttery smooth power delivery I expect. Getting this during the Labour Day sale was a cherry on top!

L
Louis Fratta
Baby Beast!

Ordered the Brushless starter combo for my TRX-4M High Trail and couldn’t be happier. It crawls great and will rip donuts now. Easy to install, quality parts and the app is great to fine tune. It’s a completely different truck and now my son wants one for his bronco.

P
Paul Garcia
Perfect Combo!

I love Furitek! Amazing products with solid performance. This combo worked perfectly for my build!

R
Robert

Game changer

S
Skylar Givens
Bam! Throttle control and speed!

I bought this for my Trx4m Injora IR40 build and it’s gives me great low speed crawl, but speed when I need it! Great product by Furitek once again.

G
Gregory smith
Trx4m

This combo is great just like all furitek brushless . My trx4m is a good slow crawl and plenty of wheel speed. Would buy again.

C
COLTON RAY
Love everything about it!

Crawls super slow and smooth as silk, and also has higher wheel speed and top speed! More power all around. Two thumbs up!

A
Allen Montgomery
Brushless starter combo

I installed this combo in a TRX4M in a Meus Ripper wow what a great setup I will be using the FuriTek brushless system in all my builds
from now on.

S
Stephen Thompson
Good product

Fast delivery with good packaging. Install was easy but instructions would have been appreciated.
