FURITEK MONSTER BRUSHLESS POWER SYSTEM WITH TX/RX FOR TRX-4MT
FURITEK MONSTER BRUSHLESS POWER SYSTEM WITH TX/RX FOR TRX-4MT
FURITEK MONSTER BRUSHLESS POWER SYSTEM WITH TX/RX FOR TRX-4MT
FURITEK MONSTER BRUSHLESS POWER SYSTEM WITH TX/RX FOR TRX-4MT

FURITEK MONSTER BRUSHLESS POWER SYSTEM WITH TX/RX FOR TRX-4MT

$139.00
You will earn 139 points for buying this product
style="display:none" ETA: 06/14/2024



FURITEK MONSTER BRUSHLESS POWER SYSTEM FOR TRX-4MT


Introducing the Furitek MONSTER brushless power system for TRX-4MT monster truck conversion version, the system includes the FURITEK MINI GODZILLA 1410 7500kv with small size yet very powerful and fast and a Lizard Pro esc. The motor is designed with high power for the monster truck with a special firmware from the Lizard Pro ESC. This power system is a complete drop-in combo for TRX-4MT Monster Truck conversion version.
With Furitek FURICAR mobile phone app and Wifi module, users can set up any parameters on the run without touching the truck, creating seamless adjustments for your favorite settings.

Features:
- A small yet powerful MINI GODZILLA 1410 7500KV
- High performance and powerful 30A/50A brushless ESC with FOC technology
- Bluetooth module built-in for wireless connection
- Precision CNC steel pinion for long-lasting operation
- Lifetime FREE firmware upgrade!

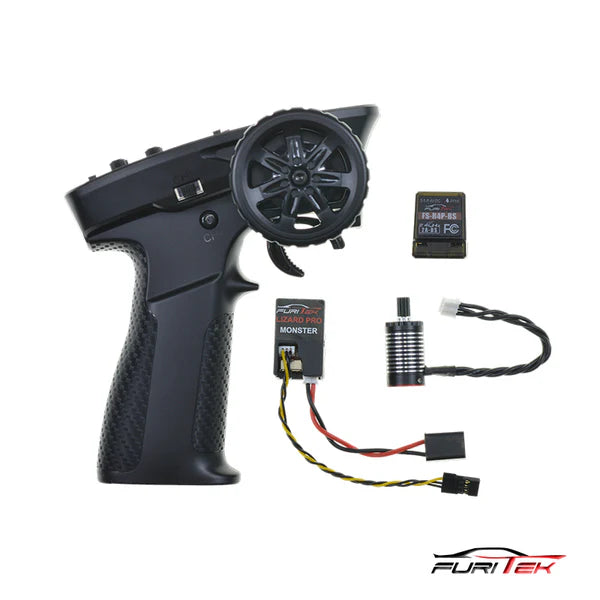

Package includes:

1 x LIZARD PRO 30A/50A BRUSHED/BRUSHLESS ESC FOR TRX-4MT WITH FOC TECHNOLOGY with enclosing plastic case

1 x built-in Wifi module

1 x MINI GODZILLA 1410 7500KV brushless motor

1 x CNC Steel Pinion

1 x Furitek Transmiter 4CH

1 x Furitek Receiver 4CH



Motor Features and Specs


Features:
- Super thin (0.2 mm) stator laminations---lower eddy losses---maximizes efficiency.
- Japansese NMB --High RPM ABEC5 bearings.
- Precision balanced rotor, smoothness for best reliability and maximum RPM.
- CNC machined 6061 T6 billet aluminum heatsink can.
- Precision engineered for maximum energy conversion.
- High purity and higher temperature single copper windings, lower copper losses,
   very good heat dissipating, maximizes efficiency.

Specifications:
- KV (RPM/Motor) – 7500
- No-load current @7.4V – 0.3A
- Watt – 80W
- Battery – 2-3S
- Resistance – 0.7 Ohms
- Max Current – 9A
- Slot/Pole – 2P
- Motor size (mm) – 15.5x25
- Weight (g) – 17g

ESC Features and Specs


Features:
- Support sensorless brushless DC and brushed DC motor (config via app, default is brushless)
- FOC (Field-oriented control) technology
- Plug & Play designed for TRX-4M monster truck
- 5V/ 6.5V 2.5A Built-in BEC (config via app)
- Support 2S-3S lipo battery
- Mini size and lightweight
- Super easy programming via App on both Android and IOS
- Firmware update available
- Real-time telemetry up to 10Hz

Specifications:
- Support 2S-3S lipo battery
- BIG BEC: 5V or 6.5V 2.5A (No additional BECs necessary when using big Servos)
- Constant current: 30A
- Burst current: 50A
- Built-in power switch
- Built-in wifi module
- Dimension (mm): 28(L)x 15.5(W)
- Weight: 3.7 gram






Color: Blue, Purple, White
Size: 20, 24
Material: 100% Polyester

Customer Reviews

Based on 2 reviews
50%
(1)
0%
(0)
50%
(1)
0%
(0)
0%
(0)
D
Daniel Chouinard
Best combo

Great motor combo, have 3 of them now and would order more

B
B
Channel 3 and 4

I sent an email to Furitek USA asking how to use channel 3 or 4 to cut on/off lights, no response. I finally figured it out but I guess I'm not high enough up the food chain to get a response or help.
Micro Godzilla cogs at slow speeds. I'm not sure how to fix that.
