FURITEK MONSTER BRUSHLESS POWER SYSTEM FOR TRX-4M


Introducing the Furitek MONSTER brushless power system for TRX-4M monster truck conversion version, the system includes the FURITEK Greyhound 1410 7500kv with small size yet very powerful and fast and a Lizard Pro esc. The motor is designed with high power for the monster truck with a special firmware from the Lizard Pro ESC. This power system is a complete drop-in combo for TRX-4M Monster Truck conversion version.
With Furitek FURICAR mobile phone app and Bluetooth module, users can set up any parameters on the run without touching the truck, creating seamless adjustments for your favorite settings.

Features:
- A small yet powerful GREYHOUND 1410 7500KV
- High performance and powerful 30A/50A brushless ESC with FOC technology
- Bluetooth module built-in for wireless connection
- Precision CNC steel pinion for long-lasting operation
- Lifetime FREE firmware upgrade!

Package includes:
1 x LIZARD PRO 30A/50A BRUSHED/BRUSHLESS ESC FOR TRX-4M WITH FOC TECHNOLOGY with enclosing plastic case
1 x built-in Bluetooth module
1 x GREYHOUND 1410 7500KV brushless motor
1 x CNC Steel Pinion

Motor Features and Specs
Features:
- Super thin (0.2 mm) stator laminations---lower eddy losses---maximizes efficiency.
- Japansese NMB --High RPM ABEC5 bearings.
- Precision balanced rotor, smoothness for best reliability and maximum RPM.
- CNC machined 6061 T6 billet aluminum heatsink can.
- Precision engineered for maximum energy conversion.
- High purity and higher temperature single copper windings, lower copper losses,
   very good heat dissipating, maximizes efficiency.

Specifications:
- KV (RPM/Motor) – 7500
- No-load current @7.4V – 0.3A
- Watt – 80W
- Battery – 2-3S
- Resistance – 0.7 Ohms
- Max Current – 9A
- Slot/Pole – 2P
- Motor size (mm) – 15.5x25
- Weight (g) – 17g

ESC Features and Specs
Features:
- Support sensorless brushless DC and brushed DC motor (config via app, default is brushless)
- FOC (Field-oriented control) technology
- Plug & Play designed for TRX-4M monster truck
- 5V/ 6.5V 2.5A Built-in BEC (config via app)
- Support 2S-3S lipo battery
- Mini size and lightweight
- Super easy programming via App on both Android and IOS
- Firmware update available
- Real-time telemetry up to 10Hz

Specifications:
- Support 2S-3S lipo battery
- BIG BEC: 5V or 6.5V 2.5A (No additional BECs necessary when using big Servos)
- Constant current: 30A
- Burst current: 50A
- Built-in power switch
- Built-in bluetooth module
- Dimension (mm): 28(L)x 15.5(W)
- Weight: 3.7 gram

Extra requirements:
- A new two-channel radio system is required



Color: Blue, Purple, White
Size: 20, 24
Material: 100% Polyester

Customer Reviews

Based on 7 reviews
100%
(7)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
J
Jonathan Barrett
Monster motor packs a punch

Works great little longer then expected but the torque is perfect.

J
Josh C.
Awesome setup

I bought this for my Trx4m and it is very powerful for such a small system. Added the crawl gears and now my truck is unstoppable. The video is full power before I added the crawl gears . I will be buying more of these for future builds.

J
James Gustafson
perfect for a monster truck

tons of speed and power to do tricks. with standard trx4m 16:6:1 gears it can go extremely fast, I'd guess 25 mph.

T
Tyler O.
Awesome little motor combo

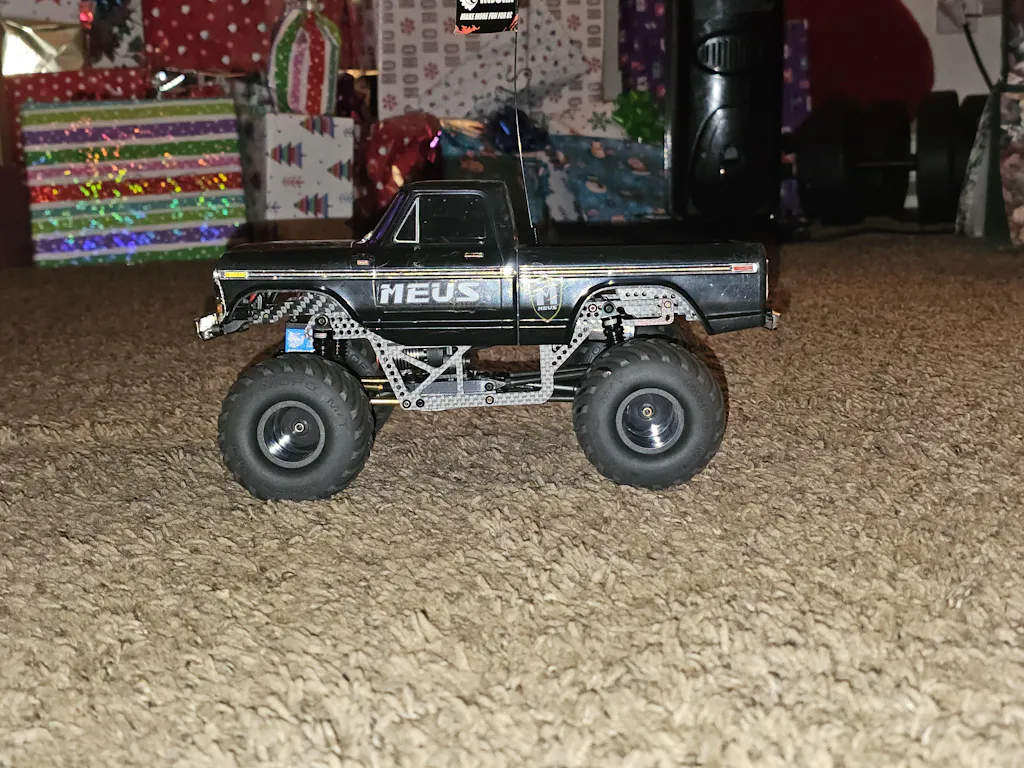

Bought for my injora scorpion monster and meus ripper monster trucks and they are great. Direct fit and really fast, almost uncontrollable on 3s. Also being able to change settings while driving with the built in bluetooth and the phone app is great too.

g
gary rubio (garu_3716)
Mini Godzilla

Nice motor. But sadly I bought the trx4m kit, which does not come with a motor adapter. This combo does not work!!! Needs adapter!!!!

H
Henry Esclabanan
Furitek Monster Power System

Excellent combo easy setup lots of power from the motor Lizard Pro ESC is a breeze to install Bluetooth connectivity and the FuriCar app got lot’s of useful and working features and tools, Monster Truck tires are humongous!!!! Thank you Furitek

J
Jr
MONSTER!!!

Just installed this kit on my trx4m hightrail c10 and this thing is a MONSTER!!! The name says it all! I'm having a blast bashing this truck.
