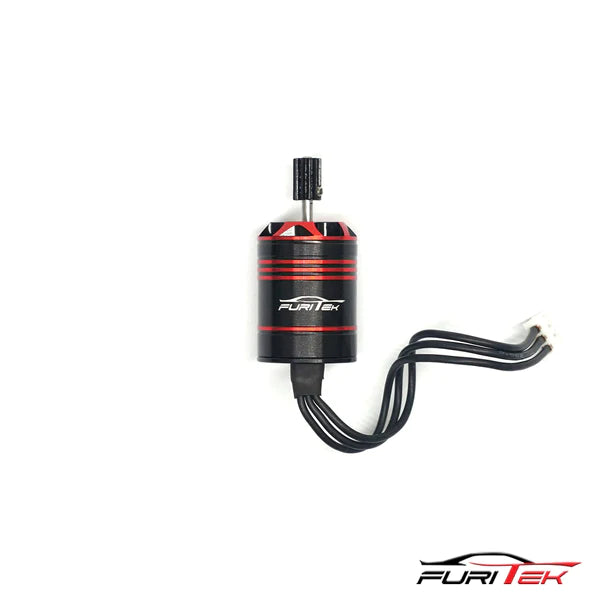

FURITEK CEDAR INRUNNER BRUSHLESS MOTOR WITH 11T STEEL PINION FOR TRX4M
Features:
- Special design inrunner 12 Pole hi-torque motor design, waterproof.
- High purity and higher temperature copper windings ---lower copper losses, very good heat dissipating--maximizes efficiency.
- Super thin (0.2mm) stator laminations---lower eddy losses---maximizes efficiency. High RPM ABEC5 bearings.
- Precision balanced rotor, smoothness for best reliability, and maximum RPM. CNC machined 6061 T6 billet aluminum heatsink can.
- Precision engineered for maximum energy conversion.
Speifications :
| Motor type | Inrunner |
| Kv (RPM/Volt) | 3456 |
| No-Load Current (@10v) | 0.7A |
| Watt | 120 |
| Battery | 2-3S |
| Ressistance | 0.17 ohm |
| Slot/Pole | 12 Pole |
| Motor Size (mm) | Φ18*25 |
| Shaft/ extend length (mm) | Φ2*8/Φ2*9 |
| Weight (g) | 20 |
| Color: | Blue, Purple, White |
| Size: | 20, 24 |
| Material: | 100% Polyester |
