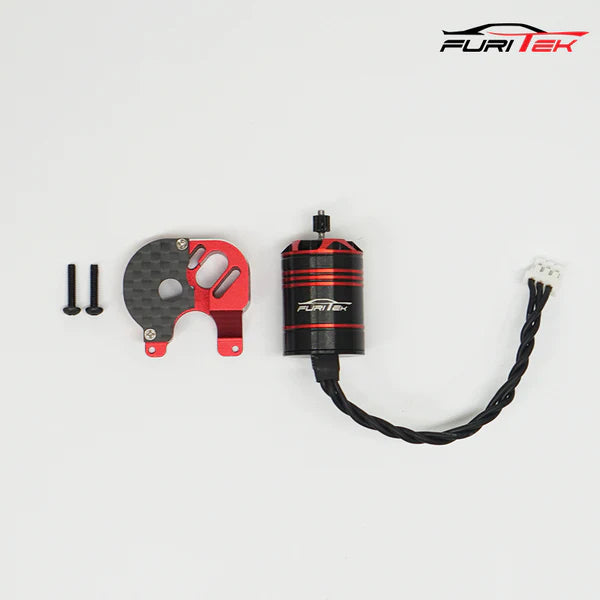

URITEK CEDAR INRUNNER BRUSHLESS MOTOR WITH 11T STEEL PINION AND CNC MOTOR MOUNT COMBO FOR SCX24
Features:
- Special design inrunner 12 Pole hi-torque motor design, waterproof.
- High purity and higher temperature copper windings ---lower copper losses, very good heat dissipating--maximizes efficiency.
- Super thin (0.2mm) stator laminations---lower eddy losses---maximizes efficiency. High RPM ABEC5 bearings.
- Precision balanced rotor, smoothness for best reliability, and maximum RPM. CNC machined 6061 T6 billet aluminum heatsink can.
- Precision engineered for maximum energy conversion.
Speifications :
Motor type | Inrunner |
Kv (RPM/Volt) | 3456 |
No-Load Current (@10v) | 0.7A |
Watt | 120 |
Battery | 2-3S |
Ressistance | 0.17 ohm |
Slot/Pole | 12 Pole |
Motor Size (mm) | Φ18*25 |
Shaft/ extend length (mm) | Φ1.5*6/Φ2*9 |
Weight (g) | 20 |
Color: | Blue, Purple, White |
Size: | 20, 24 |
Material: | 100% Polyester |
This, hands down is the best motor for 1/24 and 1/18 scale crawlers. I run it on 2 rigs and with the python pro you get buttery smooth throttle with more than ample low end torque and all the wheel speed you need. Furitek ftw.
This is the second ceader and avatar I've bought. Motor has good speed and tons of torque perfect for crawling. Avatar connects easily but does have brown outs occasionally maybe 3 or 4 times in a year seems to be better since latest update. Have had good luck with furitek. Helidirect has fast shipping and good customer service.
Anyway you look at it, any combination you use Furitek combos are the way to go.
Fitment is perfect with the furitek mount. It’s a forward mount which is was unaware. I flipped the skid plate to rear face it. Quality all around
Fit exactly how wanted and very pleased with the power of the cedar
Its a heavy rig game changer
Easy set up runs beautifully couldn’t be happier
The FURITEK CEDAR INRUNNER BRUSHLESS MOTOR WITH 11T STEEL PINION AND CNC MOTOR MOUNT COMBO FOR SCX24 I put it on my lizard pro and tested it out runs nice I can't wait to get put in my new rig I ordered from MOFO the Hognose Chassis for Scx24 Well I will give another review and some photos when I get it all put together
