Furitek SCORPION 5600kv Brushless Sensored ESC/Motor Power System for Losi Nascar
Furitek SCORPION 5600kv Brushless Sensored ESC/Motor Power System for Losi Nascar
Furitek SCORPION 5600kv Brushless Sensored ESC/Motor Power System for Losi Nascar
Furitek SCORPION 5600kv Brushless Sensored ESC/Motor Power System for Losi Nascar

Furitek SCORPION 5600kv Brushless Sensored ESC/Motor Power System for Losi Nascar

$99.99
You will earn 99.99 points for buying this product
ETA: 11/07/2024

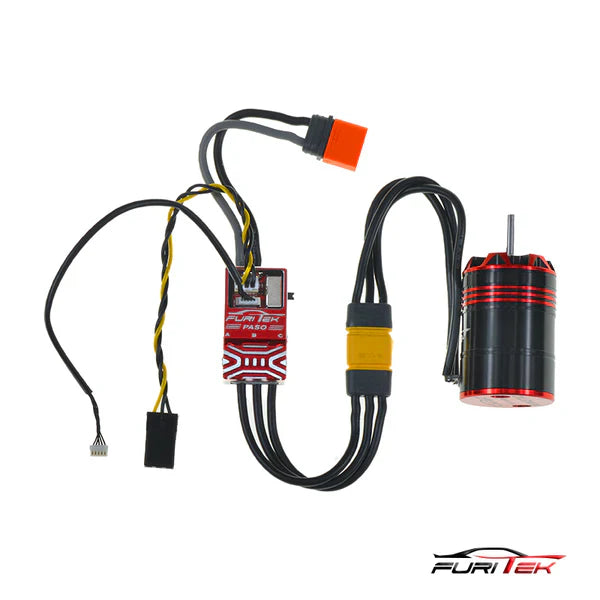

Introducing the Furitek SCORPION 5600kv Brushless Sensored ESC/Motor Power System for 1/12 Losi NASCAR

Furitek, a renowned name in the world of mini crawler electronics, is expanding its horizons by bringing its expertise to new markets. We are proud to present the Furitek SCORPION Brushless Sensored ESC/Motor Power System, designed specifically for the 1/12 Losi NASCAR. This powerful system features a sensored ESC and a high-performance brushless motor, delivering unparalleled performance and smooth control. It is a direct plug and play system for 1/12 Losi NASCAR. Just need a new TX/RX and it's ready to have a blast.

Support:

  •  1/12 Losi NASCAR AWD RC

Key Features:

  • Support for Sensored/Sensorless Operation:
    The SCORPION ESC/Motor combo supports both sensored and sensorless modes with a constant current of 40A and a burst current of 70A. This flexibility ensures optimal performance under various driving conditions.

  • Plug & Play Compatibility

  • Wireless Setup Module:
    The built-in wireless setup module eliminates the need for separate wires and is controlled by the FURICAR App, available on both Android and iOS.

  • Live Tuning:
    Enjoy real-time tuning with the Furicar App, allowing you to make adjustments on the fly without stopping the vehicle. This feature enhances the user experience by providing immediate feedback and control.

  • Smooth Throttle Control:
    Experience super smooth throttle control for enhanced driving precision, ensuring that every movement of the throttle stick translates into precise vehicle movements.

  • Compact and Lightweight:
    Designed to be mini-sized and lightweight for easy handling and installation, the Furitek SCORPION system is perfect for keeping your 1/12 Losi NASCAR AWD RC truck agile and responsive.

  • Easy Programming:
    Simple and intuitive programming via the Furicar App on both Android and iOS platforms makes setting up and customizing your ESC settings straightforward and hassle-free.

  • Real-Time Telemetry:
    Receive real-time telemetry updates up to 10Hz, keeping you informed of your vehicle’s performance. This data can be crucial for making real-time adjustments and improvements.

  • Free Lifetime Firmware Updates:
    Benefit from free lifetime firmware updates to keep your system up-to-date with the latest features and improvements. This ensures your ESC and motor combo remains at the cutting edge of performance technology.

ESC Specifications:

  • Battery Support: 2-3S LiPo batteries
  • BEC Output: 5.5V/7.4V, 3A
  • Constant Current: 40A
  • Burst Current: 70A
  • Built-in Power Switch: Integrated for convenience
  • Built-in Wireless setup module
  • Dimensions: 0.63 x 1.1 x 0.39 (inch), 16x28x10 (mm)
  • Weight: 15.2 grams (0.53oz)

Motor Specifications:

  • Motor Type: Sensored Waterproof
  • Motor Kv: 5600
  • Watt: 300W
  • Battery: 2-3S
  • Resistance: 0.035ohm
  • Max Current: 30A
  • Slot/Pole: 12 slot/4 pole
  • Motor size: 24*35mm
  • Shaft: 2.3*12mm
  • Weight: 54g

Motor Features:

  • Sensored 4 Pole hi-torque motor design.
  • High purity and higher temperature single copper windings ---lower copper losses, very good heat dissipating--maximizes efficiency.
  • Super thin (0.2mm) stator laminations---lower eddy losses---maximizes efficiency. Japansese NMB --High RPM ABEC5 bearings.
    Precision balanced rotor, smoothness for best reliability and maximum RPM. CNC machined 6061 T6 billet aluminum heatsink can.
  • Precision engineered for maximum energy conversion.

Additional Features:

  • Stock Compatibility: Compatible with the stock pinion and 2.3mm stock shaft of the 1/12 Losi NASCAR AWD RC trucks.
  • Built-in Bluetooth Module: Allows for parameter adjustments during operation without opening the electronics.
  • Intuitive App: The FURICAR App enables drivers to set up and adjust parameters effortlessly.

Package Includes:

  • 1x Furitek 40/70A PASO Sensored/Sensorless ESC built-in wireless module
  • 1x Furitek 5600kv KINETIC Brushless Sensored Motor
  • 1x User Manual
  • 2x Sensored Cable
  • 1x Signal Cable

This advanced combo brings significant power and smooth control to your 1/12 Losi NASCAR AWD RC truck, making it a top choice for both novice and experienced drivers. Upgrade your monster truck with the Furitek SCORPION Brushless Sensored ESC/Motor Power System and experience the difference.

Important Note: Heat sink aluminum adaptor is not included, We changed the angle of motor solder to fit in perfectly with Losi Nascar.
